AX3513 Datasheet, Converter, AXElite

AX3513 Features

  • Converter 2.5V to 6V Input Voltage Range Output Voltage from 0.6V to VIN High Efficiency: Up to 96% 1.4MHz Constant Frequency Operation Up to 1A Output Current Quiescent Current: 250uA (Typical)

PDF File Details

Part number:

AX3513

Manufacturer:

AXElite

File Size:

762.00kb

Download:

📄 Datasheet

Description:

1a synchronous step-down converter. AX3513 is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. The device i

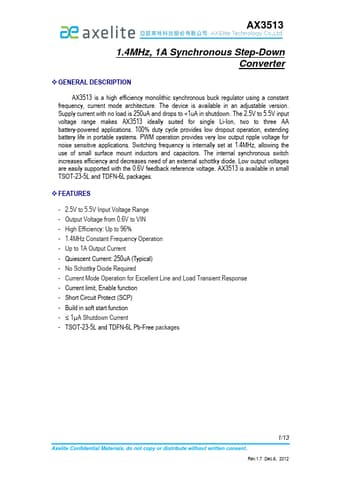

Datasheet Preview: AX3513 📥 Download PDF (762.00kb)
Page 2 of AX3513 Page 3 of AX3513

AX3513 Application

  • Applications 100% duty cycle provides low dropout operation, extending battery life in portable systems. PWM pulse skipping mode operation provides
