AX3514A Datasheet - AXElite

2A Synchronous Step-Down Converter

AX3514A Features

* 2.6V to 5.5V Input Voltage Range Output Voltages from 0.6V to VIN High Efficiency: Up to 96% 1.2MHz Constant Frequency Operation Up to 2A Output Current No Schottky Diode Required Low RDS(ON) Internal Switches: 0.15Ω Current Mode Operation for Excellent Line and Load Transient Response Current limit

AX3514A General Description

The AX3514/A/B is a 1.2MHz constant frequency current mode PWM step-down converter. It is ideal for portable equipment requiring very high current up to 2A from single-cell Lithium-ion batteries while still achieving over 90% efficiency during peak load conditions. The AX3514/A/B also can run at 100.

AX3514A Datasheet (272.90 KB)

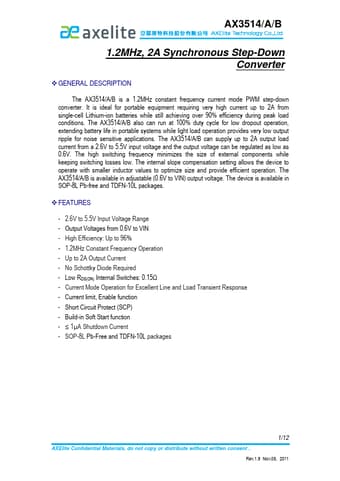

Preview of AX3514A PDF

Datasheet Details

Part number:

AX3514A

Manufacturer:

AXElite

File Size:

272.90 KB

Description:

2a synchronous step-down converter.
