AX3513A

1A Synchronous Step-Down Converter

AXElite

AX3513A Features

* 2.5V to 5.5V Input Voltage Range Output Voltage from 0.6V to VIN High Efficiency: Up to 96% 1.4MHz Constant Frequency Operation VÛmw`R

* yÑb€ Up to 1A Output Current Quiescent Current: 250uA (Typical) No Schottky Diode Required w.goftech.com for Excellent Line and Load Transient Response Curre

AX3513A General Description

AX3513A is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. The device is available in an adjustable version. Supply current with no load is 250uA and drops to <1uA in shutdown. The 2.5V to 5.5V input voltage range makes AX3513A ideally s.

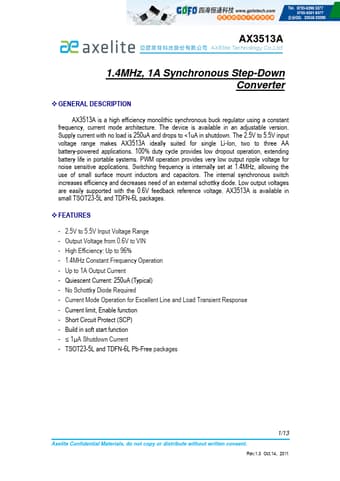

AX3513A Datasheet (703.62 KB)

AX3513A Datasheet Preview — Preview of AX3513A PDF

Datasheet Details

Part number:

AX3513A

Manufacturer:

AXElite

File Size:

703.62 KB

Description:

1a synchronous step-down converter.
