AX3514 Datasheet, Converter, AXElite

AX3514 Features

• Converter 2.6V to 5.5V Input Voltage Range Output Voltages from 0.6V to VIN High Efficiency: Up to 96% 1.2MHz Constant Frequency Operation Up to 2A Output Current No Schottky Diode Required Low R

PDF File Details

Part number:

AX3514

Manufacturer:

AXElite

File Size:

272.90kb

Download:

📄 Datasheet

Description:

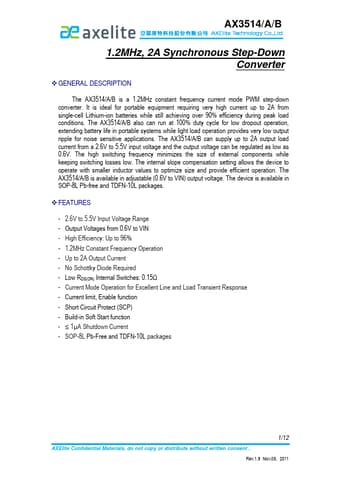

2a synchronous step-down converter. The AX3514/A/B is a 1.2MHz constant frequency current mode PWM step-down converter. It is ideal for portable equipment requiring very

AX3514 Application

• Applications The AX3514/A/B can supply up to 2A output load current from a 2.6V to 5.5V input voltage and the output voltage can be regulated as lo
