AGM1264R-FLB-FBW Datasheet (AZ Displays)

AGM1264R-FLB-FBW, LIQUID CRYSTAL DISPLAY

AZ DISPLAYS, INC.

SPECIFICATIONS FOR LIQUID CRYSTAL DISPLAY MODULE AZ DISPLAYS SPECIFICATIONS FOR LIQUID CRYSTAL DISPLAY MODULE MODEL NO.: AGM1264R-FLB-FBW Approved Checked DATE: NOV.23.2011 Department CUSTOMER: MODEL NO.: Approved Checked DATE: Department DATE NOV .23 .2011 LCM YES AGM1264R-FLB-FBW TECHNICAL SPECIFICATION Page 1 of 23 LIST Ⅰ.General Specifications

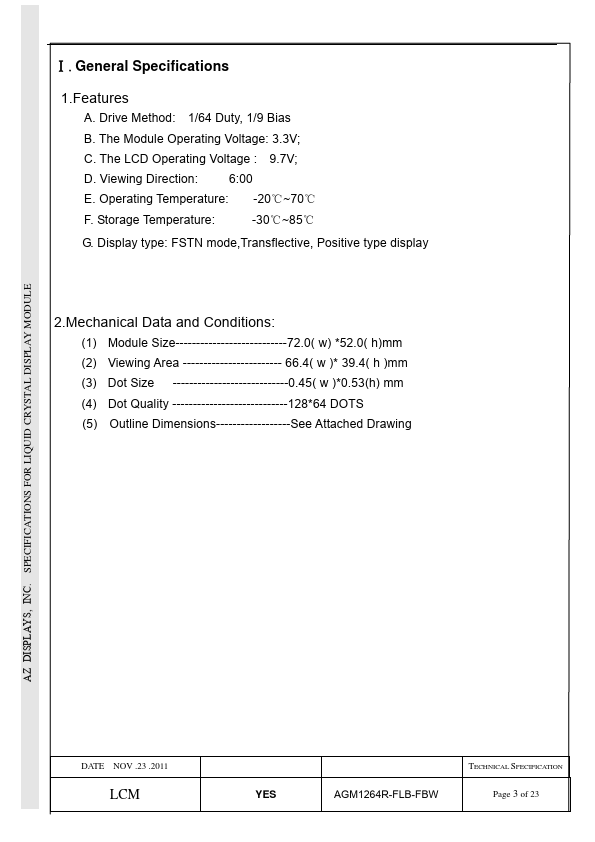

AGM1264R-FLB-FBW Features

* A. Drive Method: 1/64 Duty, 1/9 Bias B. The Module Operating Voltage: 3.3V; C. The LCD Operating Voltage : 9.7V; D. Viewing Direction: 6:00 E. Operating Temperature: -20℃~70℃ F. Storage Temperature: -30℃~85℃ G. Display type: FSTN mode,Transflective, Positive type display 2.Mechanical Data a
