ACT8712, ACT8712_Active Four Channel Integrated Power Management IC

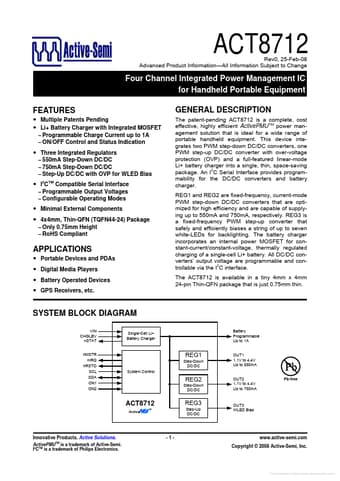

📥 Download Datasheet  Datasheet Preview Page 1

Description

Rev0, 25-Feb-08 Advanced Product Information―All Information Subject to Change ACT8712 Four Channel Integrated Power Management IC for Handheld Port.
The patent-pending ACT8712 is a complete, cost effective, highly efficient ActivePMUTM power management solution that is ideal for a wide range of por.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ACT8712, ACT8712_Active. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
ACT8712, ACT8712_Active
Manufacturer
Active-Semi
File Size
689.55 KB
Datasheet
ACT8712_Active-Semi.pdf
Description
Four Channel Integrated Power Management IC
Note
This datasheet PDF includes multiple part numbers: ACT8712, ACT8712_Active.
Please refer to the document for exact specifications by model.

Features

* Multiple Patents Pending
* Li+ Battery Charger with Integrated MOSFET
* Programmable Charge Current up to 1A

Applications

* Portable Devices and PDAs
* Digital Media Players
* Battery Operated Devices
* GPS Receivers, etc. SYSTEM BLOCK DIAGRAM VIN CHGLEV nSTAT nMSTR nIRQ nRSTO SCL SDA ON1 ON2 Single-Cell Li+ Battery Charger Battery Programmable Up to 1A REG1 Step-Down DC/DC System Cont
