ACT8796, ACT8796_Active, Six Channel Integrated Power Management IC

ACT8796 Six Channel Integrated Power Management IC for Handheld Portable Equipment .
The patent-pending ACT8796 is a complete, costeffective, highly-efficient ActivePMUTM power management solution that is ideal for a wide range of port.

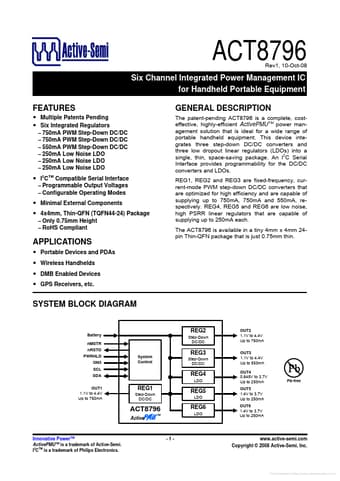

datasheet Preview Page 1 from Datasheet4u.com

ACT8796_Active-Semi.pdf

ACT8796 Datasheet Preview — This datasheet PDF includes multiple part numbers: ACT8796, ACT8796_Active. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ACT8796, ACT8796_Active

Manufacturer:

Active-Semi

File Size:

689.30 KB

Description:

Six Channel Integrated Power Management IC

Note:

This datasheet PDF includes multiple part numbers: ACT8796, ACT8796_Active.
Please refer to the document for exact specifications by model.

Features

* Multiple Patents Pending
* Six Integrated Regulators
* 750mA PWM Step-Down DC/DC
* 750mA PWM Step-Down DC/DC
* 550mA PWM Step-Down DC/DC
* 250mA Low Noise LDO
* 250mA Low Noise LDO
* 250mA Low Noise LDO Rev1, 10-Oct-08 GENERAL DESCR

Applications

* Portable Devices and PDAs
* Wireless Handhelds
* DMB Enabled Devices
* GPS Receivers, etc. SYSTEM BLOCK DIAGRAM REG2 Step-Down DC/DC Battery nMSTR nRSTO PWRHLD ON3 SCL SDA OUT1 1.1V to 4.4V Up to 750mA System Control OUT2 1.1V to 4.4V Up to 750mA OUT3 1.1V to 4.4
