AMMC0XXA 2/ 4/ or 8 Megabyte 5.0 Volt-only Flash Miniature Card

The Miniature Card is an expansion card that provides a high-performance, small form factor solution for data and file storage to the portable, handheld market, which includes audio, digital film, wireless, and PDA (Portable Digital Assistant) applications. The Miniature Card provides a low cost, lo.

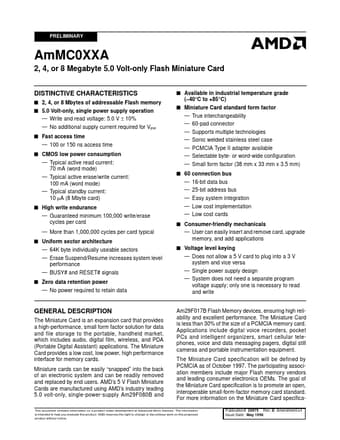

PRELIMINARY AmMC0XXA 2, 4, or 8 Megabyte 5.0 Volt-only Flash Miniature Card DISTINCTIVE CHARACTERISTICS s 2, 4, or 8 Mbytes of addressable Flash memory s 5.0 Volt-only, single power supply operation Write and read voltage: 5.0 V ± 10% No additional supply current required for VPP s Fast access time 100 or 150 ns access time s CMOS low power consumption Typical active read current: 70 mA (word mode) Typical active erase/write current: 100 mA (wor.

AMMC0XXA Features

* memory upgrades or boot program that users switches only when they require an upgrade. The use of this type of card is similar to a SIMM memory expansion
