AMMC-5026

GaAs MMIC Traveling Wave Amplifier

AMMC-5026 Features

* Frequency range: 2

* 35 GHz

* Gain: 10.5 dB

* Gain flatness: ±0.8 dB

* Return loss: Input 17 dB, Output: 15 dB

* Output power (P-1dB): 24 dBm at 10 GHz 23 dBm at 20 GHz 22 dBm at 26 GHz

* Noise figure (6

* 19 GHz): ≤ 4 dB Absolute Maxi

AMMC-5026 General Description

The AMMC-5026 is a broadband PHEMT GaAs MMIC Traveling Wave Amplifier (TWA) designed for medium output power and high gain over the full 2 GHz to 35 GHz frequency range. The design employs a 6-section cascode connected FET structure to provide flat gain and medium power as well as uniform group dela.

AMMC-5026 Datasheet (156.98 KB)

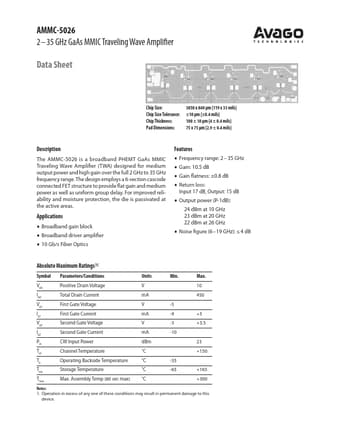

Preview of AMMC-5026 PDF

Datasheet Details

Part number:

AMMC-5026

Manufacturer:

AVAGO

File Size:

156.98 KB

Description:

Gaas mmic traveling wave amplifier.
AMMC-5026 2

*35 GHz GaAs MMIC Traveling Wave Amplifier Data Sheet Chip Size: Chip Size Tolerance: Chip Thickness: Pad Dimensions: 3050 x 840 .
