AMMC-5033 - 17.7 - 32 GHz Power Amplifier

AMMC-5033 Description

AMMC-5033 17.7 - 32 GHz Power Amplifier Data Sheet Chip Size: 2730 x 1300 µm (108 x 51.6 mils) Chip Size Tolerance: ± 10 µm (±0.4 mils) Chip Thicknes.
Avago’s AMMC-5033 is a MMIC power amplifier designed for use in wireless transmitters that operate within 17.

AMMC-5033 Features

*   Wide frequency range: 17.7
* 32 GHz
*   High power: P-1dB @ 25 GHz = 27 dBm
*   High gain: 20 dB
*   Return loss: Input: -13 dB, Output:
* 20 dB

AMMC-5033 Applications

*   Designed for use in transmitters that operate in various frequency bands between 17.7 GHz and 32 GHz.
* Can be driven by the AMMC-5040 (20-40 GHz) or the AMMC-5618 (6-20 GHz) MMIC amplifiers, increasing the power handling capability of transmitters requiring linear operation. No

📥 Download Datasheet

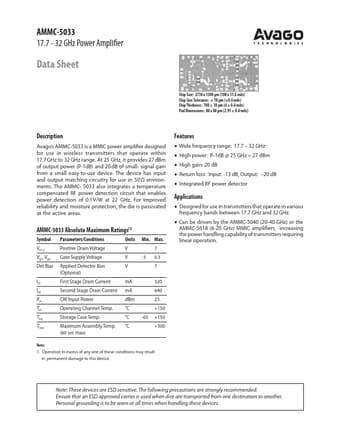

Preview of AMMC-5033 PDF
