AMMC-2008 - DC - 50 GHz SPDT Switch

AMMC-2008 Description

AMMC-2008 DC * 50 GHz SPDT Switch Data Sheet Chip Size: Chip Size Tolerance: Chip Thickness: Pad Dimensions: 930 x 630 µm (36.6 x 24.8 m.
Avago’s AMMC-2008 is a monolithic PHEMT SPDT switch with low insertion loss and high isolation from DC to 50 GHz.

AMMC-2008 Features

* Wide frequency range: DC
* 50 GHz
* Single pole double throw switch
* Low insertion loss: 2.3 dB (max. ) at 40 GHz
* High isolation: 25 dB (min. ) at 40 GHz

AMMC-2008 Applications

* For ­improved reliability and moisture protection, the die is passivated at the ­active areas. One series and two shunt PHEMTs per throw provide 2.0 dB insertion loss and 28 dB isolation at 40 GHz. Absolute Maximum Ratings[1] Symbol Parameters/Conditions Units Min. Max. Vsel Pin Tb Tstg

📥 Download Datasheet

Preview of AMMC-2008 PDF

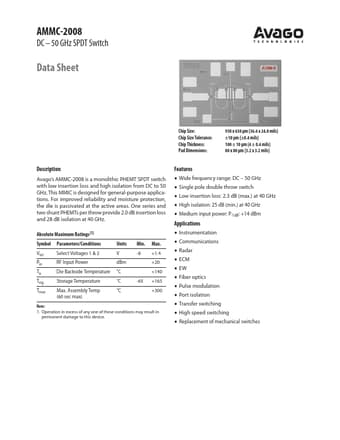

datasheet Preview Page 2 datasheet Preview Page 3
