AMMC-5025 Datasheet, Twa, AVAGO

AMMC-5025 Features

  • Twa x 50 : match on input and output x ESD protection, 70V MM and 300V HBM Typical Performance (Vd=5V, Idsq=0.1A) x Frequency range 30KHz to 80 GHz x Small signal Gain: 8dB x P-1dB: 15 dBm

PDF File Details

Part number:

AMMC-5025

Manufacturer:

AVAGO

File Size:

267.34kb

Download:

📄 Datasheet

Description:

Twa. The AMMC-5025 MMIC is a 30KHz to 80GHz ultra broadband traveling wave amplifier. In this operational frequency band, AMMC-5025 provide

Datasheet Preview: AMMC-5025 📥 Download PDF (267.34kb)

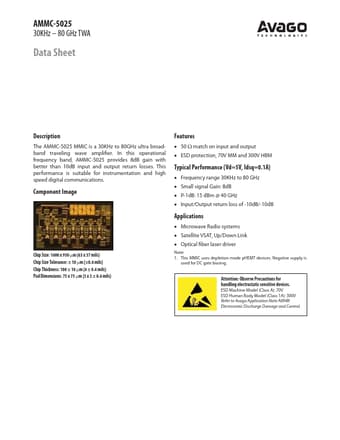

Page 2 of AMMC-5025 Page 3 of AMMC-5025

AMMC-5025 Application

  • Applications x Microwave Radio systems x Satellite VSAT, Up/Down Link x Optical fiber laser driver Note: 1. This MMIC uses depletion mode pHEMT devic
