AMMC-5023 Datasheet, Amplifier, AVAGO

AMMC-5023 Features

  • Amplifier
  • Frequency range: 21.2
      – 26.5 GHz
  • High gain: 23 dB
  • Low noise figure: 2.3 dB
  • Input and output return loss: >10 dB
  • Single

PDF File Details

Part number:

AMMC-5023

Manufacturer:

AVAGO

File Size:

267.54kb

Download:

📄 Datasheet

Description:

Low noise amplifier. Avago’s AMMC-5023 is a high gain, low noise amplifier that operates from 21 GHz to over 30 GHz. By eliminating the complex tuning and

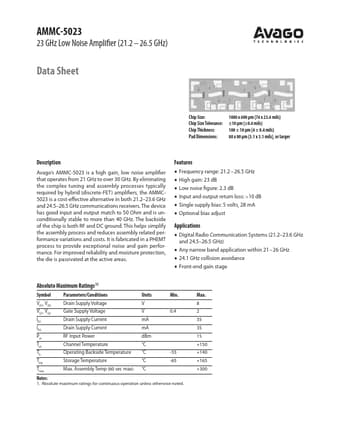

Datasheet Preview: AMMC-5023 📥 Download PDF (267.54kb)
Page 2 of AMMC-5023 Page 3 of AMMC-5023

AMMC-5023 Application

  • Applications
  • Digital Radio Communication Systems (21.2
      –23.6 GHz and 24.5
      –26.5 GHz)
  • Any narrow ba
