* Frequency Range: 6
* 20 GHz
* High Gain: 14.5 dB Typical
* Output Power: 19.5 dBm Typical
* Input and Output Return Loss: < -12 dB DataSheet4U.com
* Single Supply Bias: 5 V @ 107 mA AMMC-5618 Absolute Maximum Ratings [1] Symbol VD1,VD2 VG1 VG2 ID1 ID
AMMC-5618 Datasheet (216.33 KB)
AMMC-5618
Hewlett-Packard
216.33 KB
6 - 20 ghz amplifier.
www.DataSheet4U.com

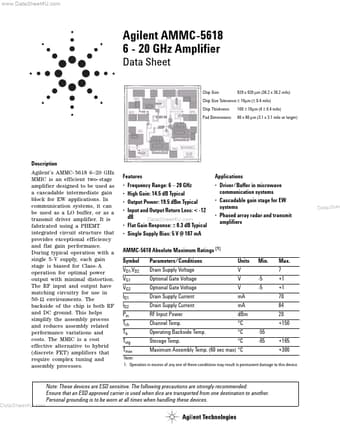

Agilent AMMC-5618 6 - 20 GHz Amplifier
Data Sheet
Chip Size: 920 x 920 µm (36.2 x 36.2 mils) 100 ± 10µm (4 ± 0.4 mils) 80 x 80 µm.
