AMS2501 Datasheet - Advanced Monolithic Systems

AMS2501 1A VERY LOW DROPOUT VOLTAGE REGULATORS

TThhee AMS2501 series are adjustable and fixed low dropout voltage regulators are designed to provide 1A output current. The dropout voltage of the device is 100mV at light loads and rising to 200mV at 500mA output current. A second input voltage of 1.2V or greater than the output is required to ach.

AMS2501 Features

* Adjustable or Fixed Output 1.5V, 1.8V, 2.5V, 2.85V, 3.0V, 3.3V, 3.5V and 5.0V

* Output Current of 1A

* Low Dropout, typ. 200mV at 500mA Output Current

* Fast Transient Response

* Remote Sense APPLICATIONS

* High Efficiency Current Regulators

AMS2501_AdvancedMonolithicSystems.pdf

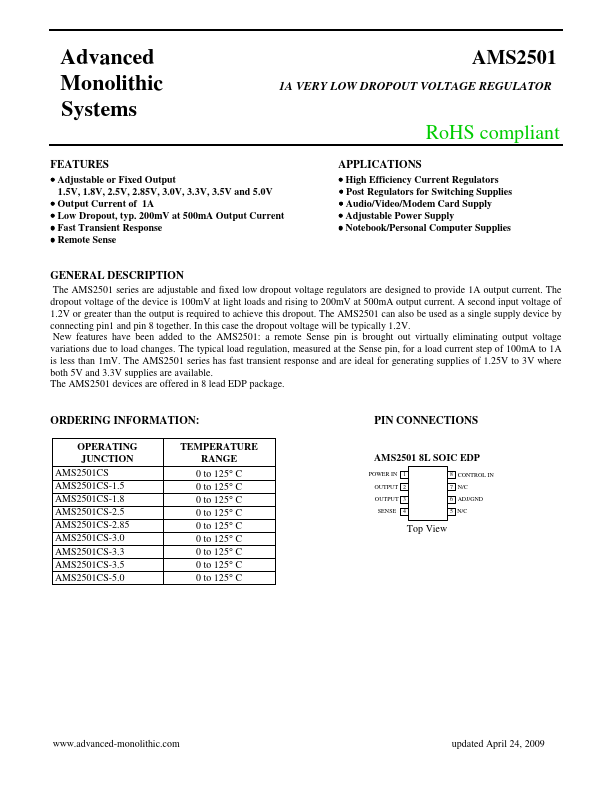

Preview of AMS2501 PDF

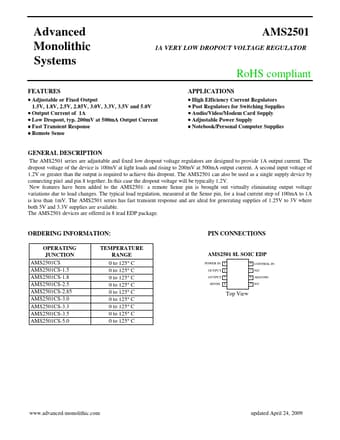

AMS2501 Datasheet Preview Page 2 AMS2501 Datasheet Preview Page 3

Datasheet Details

Part number:

AMS2501

Manufacturer:

Advanced Monolithic Systems

File Size:

104.15 KB

Description:

1a very low dropout voltage regulators.
