AMS2502 Datasheet - Advanced Monolithic Systems

1A VERY LOW DROPOUT VOLTAGE REGULATORS

AMS2502 Features

* AMS2501/AMS2502 1A VERY LOW DROPOUT VOLTAGE REGULATORS APPLICATIONS

* High Efficiency Current Regulators

* Post Regulators for Switching Supplies

* Audio/Video/Modem Card Supply

* Adjustable Power Supply

* Notebook/Personal Computer Supplies

* Adjus

AMS2502 General Description

The The AMS2501/AMS2502 series of adjustable and fixed low dropout voltage regulators are designed to provide 1A output current. The dropout voltage of the device is 100mV at light loads and rising to 200mV at 500mA output current. A second input voltage of 1.2V or greater than the output is require.

AMS2502 Datasheet (63.92 KB)

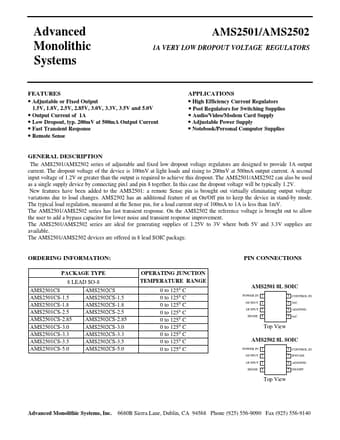

Preview of AMS2502 PDF

Datasheet Details

Part number:

AMS2502

Manufacturer:

Advanced Monolithic Systems

File Size:

63.92 KB

Description:

1a very low dropout voltage regulators.
