AP3C035Y N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Advanced Power Electronics

Description

Advanced Power Electronics Corp.AP3C035Y Halogen-Free Product N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Low Gate C.
AP3C035 series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switchin.

📥 Download Datasheet

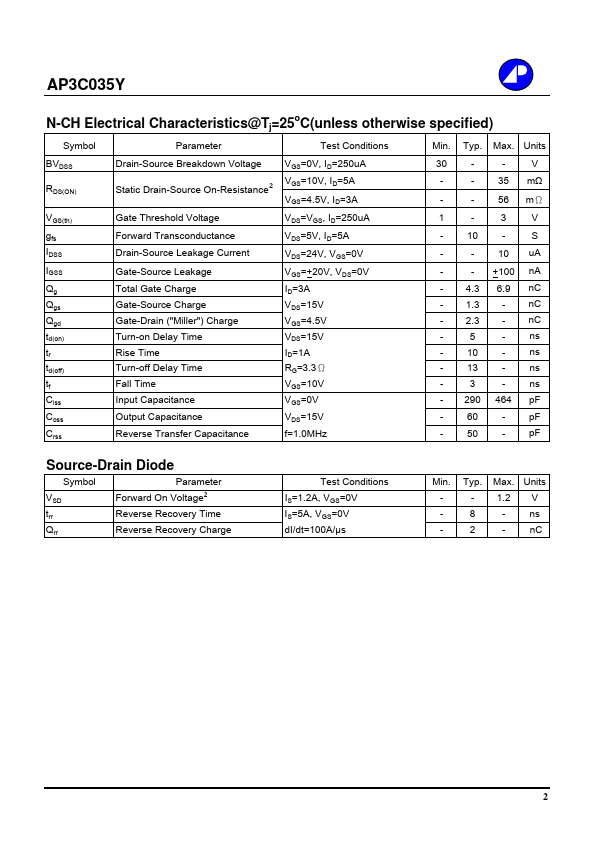

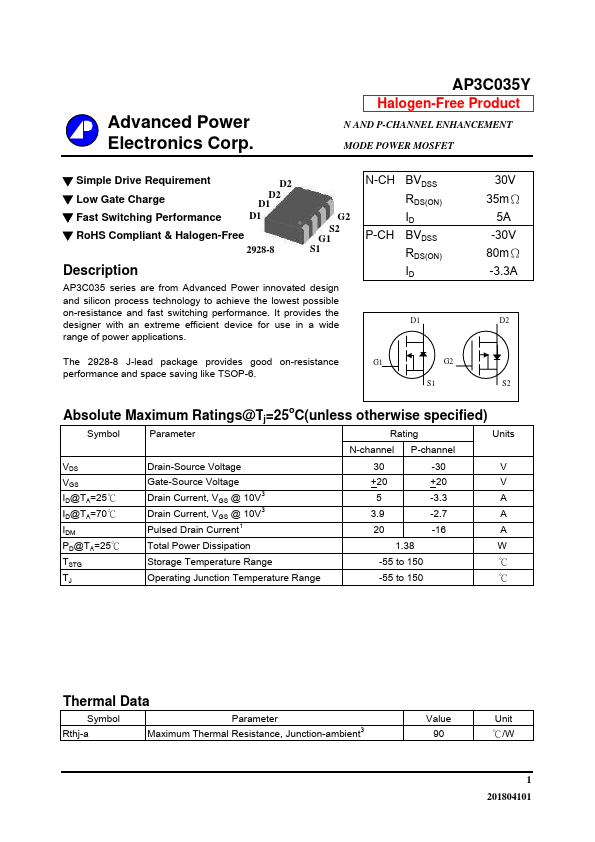

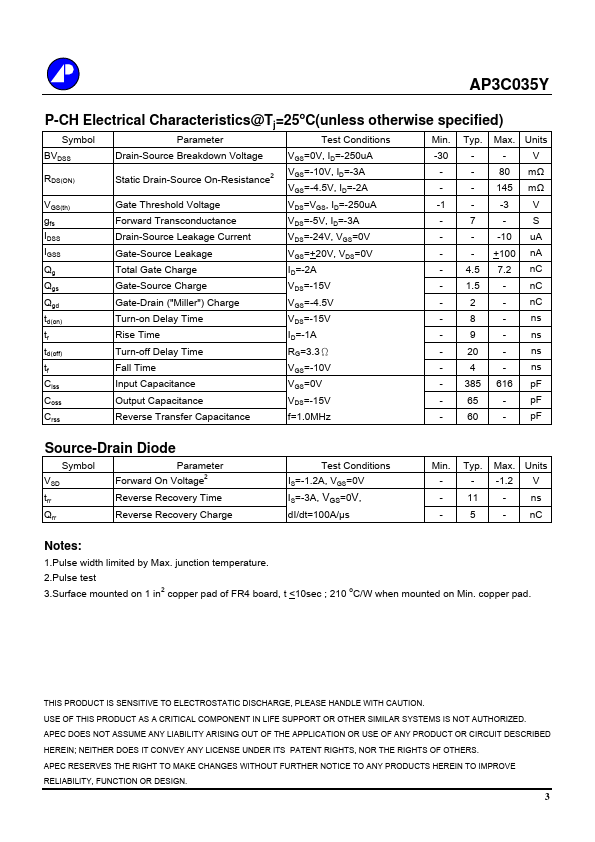

AP3C035Y Datasheet Preview — Preview of AP3C035Y PDF

Datasheet Specifications

Part number: AP3C035Y
Manufacturer: Advanced Power Electronics
File Size: 141.33 KB
Datasheet: AP3C035Y-AdvancedPowerElectronics.pdf
Description: N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* N-CH P-CH BVDSS RDS(ON) ID BVDSS RDS(ON) ID D1 The 2928-8 J-lead package provides good on-resistance G1 performance and space saving like TSOP-6. G2 S1 30V 35mΩ 5A -30V 80mΩ -3.3A D2 S2 Absolute Maximum Ratings@Tj=25oC. (unless otherwise specified) Symbol Parameter Rating Units N-chan
