AP4563AGH-HF

N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET

AP4563AGH-HF General Description

TO-252-4L Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and costeffectiveness. N-CH P-CH BVDSS RDS(ON) ID BVDSS RDS(ON) ID D1 G1 G2 S1 40V 20mΩ 9.6A -40V 36mΩ -7.3A D2 S2 Absolute Maximum Rating.

AP4563AGH-HF Datasheet (123.47 KB)

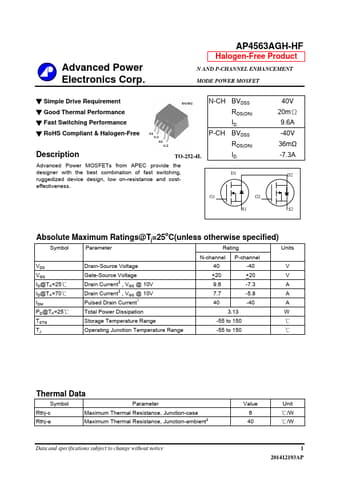

Preview of AP4563AGH-HF PDF

Datasheet Details

Part number:

AP4563AGH-HF

Manufacturer:

Advanced Power Electronics

File Size:

123.47 KB

Description:

N and p-channel enhancement mode power mosfet.
Advanced Power Electronics Corp. AP4563AGH-HF Halogen-Free Product N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Good T.
