AP4563GM, N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET

www.DataSheet4U.com AP4563GM Pb Free Plating Product Advanced Power Electronics Corp.▼ Simple Drive Requirement ▼ Fast Switching Performance ▼ RoHS.
The Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and.

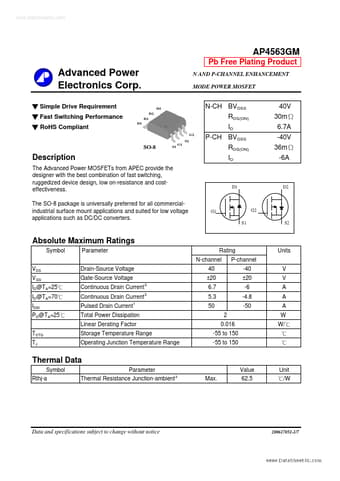

datasheet Preview Page 1 from Datasheet4u.com

AP4563GM_AdvancedPowerElectronics.pdf

AP4563GM Datasheet Preview — Preview of AP4563GM PDF

Datasheet Details

Part number:

AP4563GM

Manufacturer:

Advanced Power Electronics

File Size:

119.77 KB

Description:

N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* and suited for low voltage applications such as DC/DC converters. D1 D2 G1 S1 G2 S2 Absolute Maximum Ratings Symbol VDS VGS ID@TA=25℃ ID@TA=70℃ IDM PD@TA=25℃ TSTG TJ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Continuous Drain Current Pulsed Drain Current 1 3 3
