* Trench + Field Stop IGBT® Technology - Low voltage drop - Low tail current - Switching frequency up to 20 kHz - Soft recovery parallel diodes - Low diode VF - Low leakage current - Avalanche energy rated - RBSOA and SCSOA rated
* Kelvin emitter for easy drive
* Very low str
APTGT600A60 Datasheet (444.18 KB)
APTGT600A60
Advanced Power Technology
444.18 KB
Phase leg trench + field stop igbt power module.
www.DataSheet4U.com
APTGT600A60

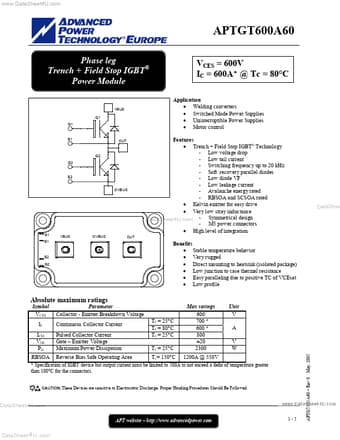

Phase leg Trench + Field Stop IGBT® Power Module
VBUS Q1 G1
VCES = 600V IC = 600A
* @ Tc = 80°C
