APTGT600SK60 - Buck chopper Trench + Field Stop IGBT Power Module

Advanced Power Technology

📥 Download Datasheet

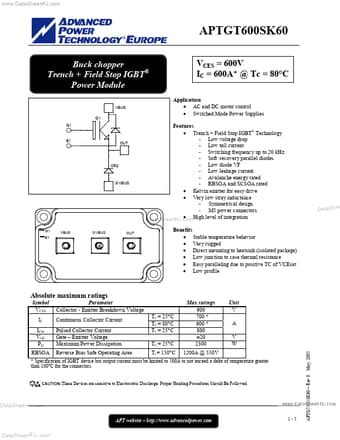

APTGT600SK60 Datasheet Preview — Preview of APTGT600SK60 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	APTGT600SK60
Manufacturer	Advanced Power Technology
File Size	444.10 KB
Description	Buck chopper Trench + Field Stop IGBT Power Module
Datasheet	APTGT600SK60_AdvancedPowerTechnology.pdf

APTGT600SK60 Product details

Features

Trench + Field Stop IGBT® Technology - Low voltage drop - Low tail current - Switching frequency up to 20 kHz - Soft recovery parallel diodes - Low diode VF - Low leakage current - Avalanche energy rated - RBSOA and SCSOA rated.
Kelvin emitter for easy drive.
Very low stray inductance - Symmetrical design - M5 power connectors.
High level of integration DataSheet4U. com Benefits.
Stable temperature behavior.
Very rugged.
Direct mount.
