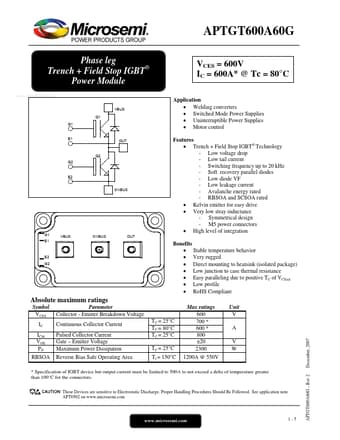

APTGT600A60G - Phase leg Trench Field Stop IGBT Power Module

Microsemi Corporation

Datasheet Details

Part number	APTGT600A60G
Manufacturer	Microsemi ↗ Corporation
File Size	154.46 KB
Description	Phase leg Trench Field Stop IGBT Power Module
Datasheet	APTGT600A60G_MicrosemiCorporation.pdf

Trench + Field Stop IGBT® Technology - Low voltage drop - Low tail current - Switching frequency up to 20 kHz - Soft recovery parallel diodes - Low diode VF - Low leakage current - Avalanche energy rated - RBSOA and SCSOA rated.
Kelvin emitter for easy drive.
Very low stray inductance - Symmetrical design - M5 power connectors.
High level of integration Benefits.
Stable temperature behavior.
Very rugged.
Direct mounting to heatsink.
