APTGT600U120D4

Single switch Trench IGBT Power Module

APTGT600U120D4 Features

* Trench + Field Stop IGBT® Technology - Low voltage drop - Low tail current - Switching frequency up to 20 kHz - Soft recovery parallel diodes - Low diode VF - Low leakage current - Avalanche energy rated - RBSOA and SCSOA rated

* Kelvin emitter for easy drive

* Low stray in

APTGT600U120D4 Datasheet (355.48 KB)

Preview of APTGT600U120D4 PDF

Datasheet Details

Part number:

APTGT600U120D4

Manufacturer:

Advanced Power Technology

File Size:

355.48 KB

Description:

Single switch trench igbt power module.

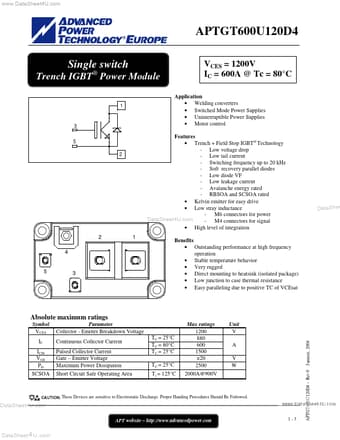

www.DataSheet4U.com APTGT600U120D4 Single switch ® Trench IGBT Power Module 1 VCES = 1200V IC = 600A @ Tc = 80°C Application

* Welding conv.
