APTGT600U170D4 - Single switch Trench + Field Stop IGBT Power Module

Advanced Power Technology

📥 Download Datasheet

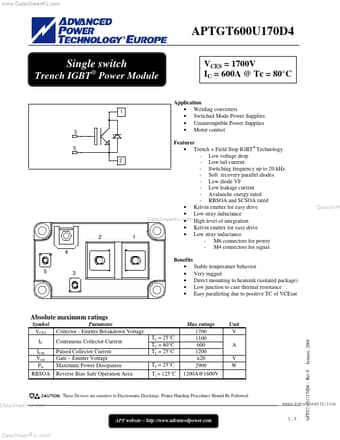

APTGT600U170D4 Datasheet Preview — Preview of APTGT600U170D4 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	APTGT600U170D4
Manufacturer	Advanced Power Technology
File Size	312.28 KB
Description	Single switch Trench + Field Stop IGBT Power Module
Datasheet	APTGT600U170D4_AdvancedPowerTechnology.pdf

APTGT600U170D4 Product details

Features

Trench + Field Stop IGBT® Technology - Low voltage drop - Low tail current - Switching frequency up to 20 kHz - Soft recovery parallel diodes - Low diode VF - Low leakage current - Avalanche energy rated - RBSOA and SCSOA rated.
Kelvin emitter for easy drive.
Low stray inductance DataSheet4U. com.
High level of integration.
Kelvin emitter for easy drive.
Low stray inductance - M6 connectors for power - M4 connectors for signal Benefits.
