ARF1501 Datasheet - Advanced Power Technology

ARF1501 RF POWER MOSFET N-CHANNEL ENHANCEMENT MODE

S D S ARF1501 D G S ARF1500 BeO 135-05 RF POWER MOSFET • Specified 300 Volt, 27.12 MHz Characteristics: • Output Power = 900 Watts. • Gain = 17dB (Class C) • Efficiency > 75% MAXIMUM RATINGS Symbol VDSS VDGO ID VGS PD TJ,TSTG TL Parameter Drain-Source Voltage Drain-Gate Voltage Continuous Drain Current @ TC = 25°C Gate-Source Voltage Total Device Dissipation @ TC = 25°C N - CHANNEL ENHANCEMENT MODE S G S 250V 1500W 40MHz The ARF1501 is an RF power transistor designed for very high po.

ARF1501_AdvancedPowerTechnology.pdf

Preview of ARF1501 PDF

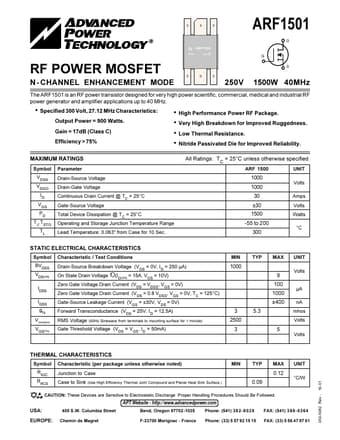

ARF1501 Datasheet Preview Page 2

Datasheet Details

Part number:

ARF1501

Manufacturer:

Advanced Power Technology

File Size:

114.63 KB

Description:

Rf power mosfet n-channel enhancement mode.
