ARF241 Datasheet - Power Semiconductors

ARF241 FAST RECOVERY DIODE

ANSALDO Ansaldo Trasporti s.p.a. Unita' Semiconduttori Via N. Lorenzi 8 - I 16152 GENOVA - ITALY Tel. int. +39/(0)10 6556549 - (0)10 6556488 Fax Int. +39/(0)10 6442510 Tx 270318 ANSUSE I - FAST RECOVERY DIODE ARF241 Repetitive voltage up to Mean forward current Surge current 2500 V 260 A 3 kA FINAL SPECIFICATION nov 97 - ISSUE : 01 Symbol Characteristic Conditions Tj [°C] Value Unit BLOCKING V RRM V RSM I RRM Repetitive peak reverse voltage Non-repetitive peak reverse voltage Repeti.

ARF241_PowerSemiconductors.pdf

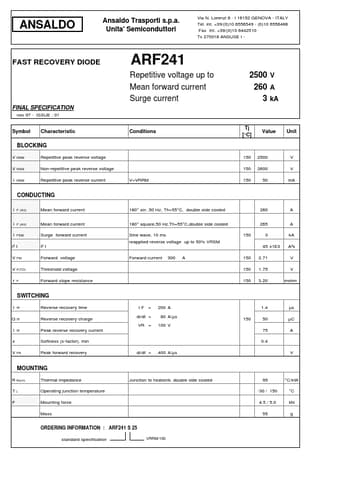

Preview of ARF241 PDF
ARF241 Datasheet Preview Page 2 ARF241 Datasheet Preview Page 3

Datasheet Details

Part number:

ARF241

Manufacturer:

Power Semiconductors

File Size:

43.50 KB

Description:

Fast recovery diode.
