ARF260 Datasheet - Power Semiconductors

ARF260 FAST RECOVERY DIODE

ANSALDO Ansaldo Trasporti s.p.a. Unita' Semiconduttori Via N. Lorenzi 8 - I 16152 GENOVA - ITALY Tel. int. +39/(0)10 6556549 - (0)10 6556488 Fax Int. +39/(0)10 6442510 Tx 270318 ANSUSE I - FAST RECOVERY DIODE ARF260 Repetitive voltage up to Mean forward current Surge current 3300 V 190 A 3 kA FINAL SPECIFICATION ott 97 - ISSUE : 02 Symbol Characteristic Conditions Tj [°C] Value Unit BLOCKING V RRM V RSM I RRM Repetitive peak reverse voltage Non-repetitive peak reverse voltage Repeti.

ARF260_PowerSemiconductors.pdf

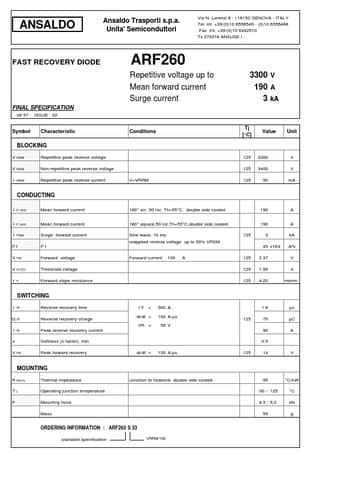

Preview of ARF260 PDF
ARF260 Datasheet Preview Page 2 ARF260 Datasheet Preview Page 3

Datasheet Details

Part number:

ARF260

Manufacturer:

Power Semiconductors

File Size:

43.35 KB

Description:

Fast recovery diode.
