ARF2012 FAST RECOVERY DIODE

ANSALDO Ansaldo Trasporti s.p.a. Unita' Semiconduttori Via N. Lorenzi 8 - I 16152 GENOVA - ITALY Tel. int. +39/(0)10 6556549 - (0)10 6556488 Fax Int. +39/(0)10 6442510 Tx 270318 ANSUSE I - FAST RECOVERY DIODE ARF2012 Repetitive voltage up to Mean forward current Surge current 2600 V 1525 A 16 kA FINAL SPECIFICATION apr 97 - ISSUE : 04 Symbol Characteristic Conditions Tj [°C] Value Unit BLOCKING V RRM V RSM I RRM Repetitive peak reverse voltage Non-repetitive peak reverse voltage Rep.

ARF2012_PowerSemiconductors.pdf

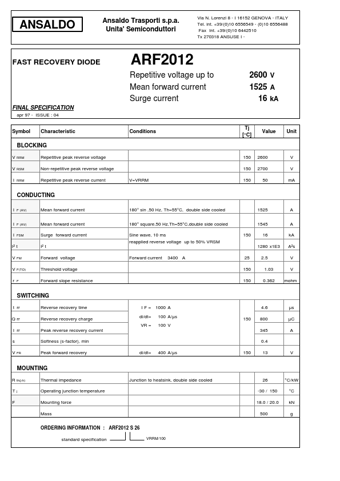

Preview of ARF2012 PDF
ARF2012 Datasheet Preview Page 2 ARF2012 Datasheet Preview Page 3

Datasheet Details

Part number:

ARF2012

Manufacturer:

Power Semiconductors

File Size:

45.23 KB

Description:

Fast recovery diode.
