ARF220 Datasheet - Power Semiconductors

ARF220 FAST RECOVERY DIODE

ANSALDO Ansaldo Trasporti s.p.a. Via N. Lorenzi 8 - I 16152 GENOVA ITALY Tel. int. +39/(0)10 6556549 - (0)10 6556488 Fax Int. +39/(0)10 6442510 FAST RECOVERY DIODE ARF220 Repetitive voltage up to Mean forward current Surge current 1400 V 445 A 5 kA Tj [°C] FINAL SPECIFICATION ott 97 - ISSUE : 02 Symbol Characteristic Conditions Value Unit BLOCKING V RRM V RSM I RRM Repetitive peak reverse voltage Non-repetitive peak reverse voltage Repetitive peak reverse current V=VRRM 125 1400 125.

ARF220_PowerSemiconductors.pdf

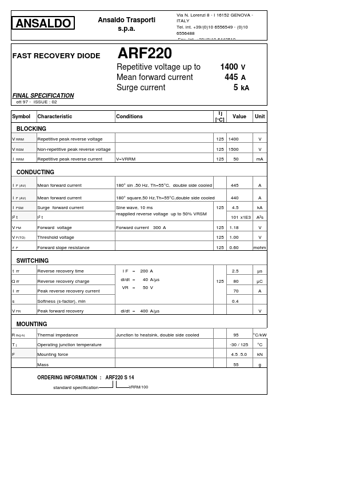

Preview of ARF220 PDF
ARF220 Datasheet Preview Page 2 ARF220 Datasheet Preview Page 3

Datasheet Details

Part number:

ARF220

Manufacturer:

Power Semiconductors

File Size:

43.47 KB

Description:

Fast recovery diode.
