ARF1502 Datasheet - Advanced Power Technology

ARF1502 RF POWER MOSFET N-CHANNEL ENHANCEMENT MODE

S D S ARF1502 D G S ARF1500 BeO 135-05 RF POWER MOSFET • Specified 65 Volt, 27.12 MHz Characteristics: • Output Power = 900 Watts. • Gain = 17dB (Class C) • Efficiency > 75% MAXIMUM RATINGS Symbol VDSS VDGO ID VGS PD TJ,TSTG TL Parameter N - CHANNEL ENHANCEMENT MODE S G S 65V 1500W 40MHz The ARF1500 is an RF power transistor designed for class C/E operation in very high power scientific, commercial, medical and industrial RF power generator and amplifier applications up to 40 MHz. A.

ARF1502_AdvancedPowerTechnology.pdf

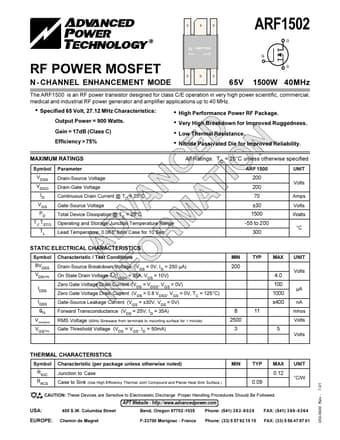

Preview of ARF1502 PDF
ARF1502 Datasheet Preview Page 2

Datasheet Details

Part number:

ARF1502

Manufacturer:

Advanced Power Technology

File Size:

114.77 KB

Description:

Rf power mosfet n-channel enhancement mode.
