VFT300-28 VHF POWER MOSFET Silicon N-Channel Enhancement Mode

VFT300-28 Description

VFT300-28 VHF POWER MOSFET Silicon N-Channel Enhancement Mode .
The VFT300-28 is Designed for Wideband High Power VHF Amplifier Applications operating up to 250 MHz.

VFT300-28 Features

* PG = 14 dB Typical at 175 MHz
* η D = 55% Typ. at POUT = 300 Watts
* Omnigold™ Metalization System E .1925 D C D D (4X).060 R M G H I F G N G Sources are connected to flange L J K MAXIMUM RATINGS ID V(BR)DSS VDGR VGS PDISS TJ T STG θ JC O 16 A 65 V 65 V ± 40 V 30

📥 Download Datasheet

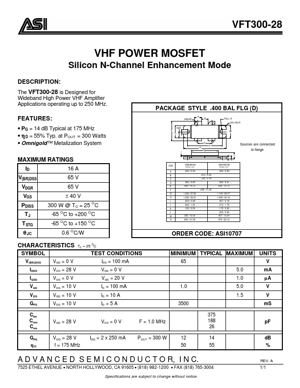

Preview of VFT300-28 PDF
datasheet Preview Page 2

Datasheet Details

Part number
VFT300-28
Manufacturer
Advanced Semiconductor
File Size
24.55 KB
Datasheet
VFT300-28_AdvancedSemiconductor.pdf
Description
VHF POWER MOSFET Silicon N-Channel Enhancement Mode
