MMA703 - DC to 6 GHz Amplifier

Product Overview

Aeroflex Circuit Technology

Part number	MMA703
Manufacturer	Aeroflex Circuit Technology
File Size	425.68 KB
Description	DC to 6 GHz Amplifier
Datasheet	MMA703 Datasheet
Additional preview pages of the MMA703 datasheet.

The MMA703 is a fully matched amplifier fabricated in Aeroflex / Metelics reliable InGap HBT technology.

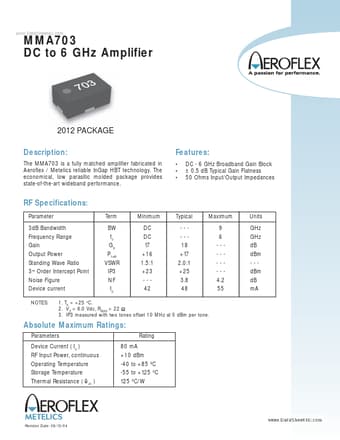

DC - 6 GHz Broadband Gain Block ± 0.5 dB Typical Gain Flatness 50 Ohms Input/Output Impedances RF Specifications: Parameter 3dB Bandwidth Frequency Range Gain Output Power Standing Wave Ratio 3 Order Intercept Point Noise Figure Device current NOTES: rd Term BW f0 GP P1dB VSWR IP3 NF IC Minimum DC DC 1 7 +16 1.5:1 +23 --42 Typical ----18 +1 7 2.0:1 +25 3.8 48 Maximum 9 6 --------4.2 55 Units GHz GHz dB dBm --dBm dB mA 1. TA = +25 °C. 2. VS = 6.0 Vdc, R BIAS.
