MMA701A - InGaP HBT Amplifier

Product Overview

Aeroflex

Part number	MMA701A
Manufacturer	Aeroflex
File Size	607.55 KB
Description	InGaP HBT Amplifier
Datasheet	MMA701A Datasheet

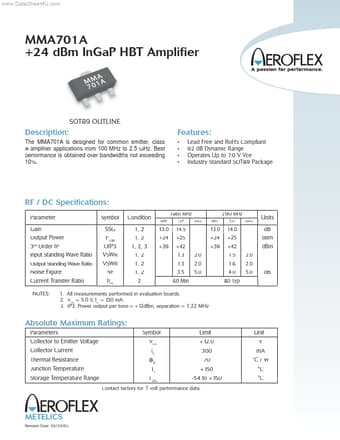

Additional preview pages of the MMA701A datasheet.

The MMA701A is designed for common emitter, class A ampliﬁer applications from 100 MHz to 2.5 GHz.

Lead Free and RoHS Compliant 92 dB Dynamic Range Operates Up to 7.0 V Vce Industry Standard SOT89 Package RF / DC Specifications: Parameter Gain Output Power 3rd Order IP Input Standing Wave Ratio Output Standing Wave Ratio Symbol SSG P1dB OIP3 VSWR VSWR NF hFE Condition 1, 2 1, 2 1, 2, 3 1, 2 1, 2 1, 2 2 1960 MHz MIN TYP MAX MIN 21 40 MHz TYP MAX Units dB dBm dBm 13.0 +24 +39 14.5 +25 +42 1.3 1.3 3.5 60 Min 2.0 2.0 5.0 13.0 +24 +39 14.0 +25 +42.
