MMA706 - DC to 6 GHz Amplifier

Product Overview

Aeroflex

Part number	MMA706
Manufacturer	Aeroflex
File Size	249.46 KB
Description	DC to 6 GHz Amplifier
Datasheet	MMA706 Datasheet

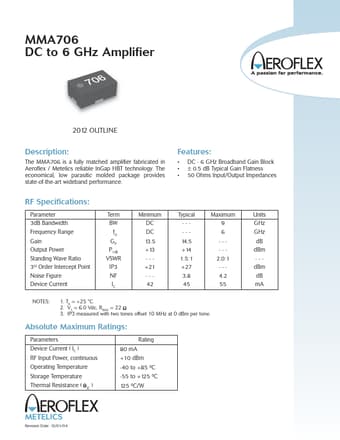

Additional preview pages of the MMA706 datasheet.

The MMA706 is a fully matched amplifier fabricated in Aeroflex / Metelics reliable InGap HBT technology.

DC - 6 GHz Broadband Gain Block.
± 0.5 dB Typical Gain Flatness.
50 Ohms Input/Output Impedances RF Specifications: Parameter 3dB Bandwidth Frequency Range Gain Output Power Standing Wave Ratio 3rd Order Intercept Point Noise Figure Device Current Term BW fO GP P1dB VSWR IP3 NF IC Minimum DC DC 13.5 +13 --+21 --42 Typical ----14.5 +14 1.5:1 +27 3.8 45 Maximum 9 6 ----- 2.0:1 --4.2 55 NOTES: 1. TA = +25 °C. 2. VS = 6.0 Vdc, RBIAS = 22 3. IP3 measured with two t.
