MMA707 Datasheet, Amplifier, Aeroflex

MMA707 Features

  • Amplifier
  • High Output Power: +31 dBm (Typ)
  • High 3rd Order IP: +50 dBm (Typ)
  • High Dynamic Range: 97 dB (Typ)
  • 3mm square QFN plastic package MMA707 -3030 3m

PDF File Details

Part number:

MMA707

Manufacturer:

Aeroflex

File Size:

878.82kb

Download:

📄 Datasheet

Description:

1 watt ingap hbt amplifier. The MMA707-3030 is a Power InGaP HBT device that is designed to provide moderate power levels from 100 MHz to 2.5 GHz. Best operation

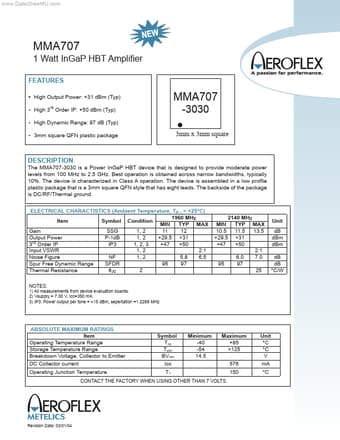

Datasheet Preview: MMA707 📥 Download PDF (878.82kb)
Page 2 of MMA707 Page 3 of MMA707
