MMA701 Datasheet, Hbt, MCE

MMA701 Features

  • Hbt
  • +45 dBm IP3 at 2.1 GHz +25 dBm Output Power at P-1dB Compression 50% Power added efficiency (typical) 100 MHz to 4000 MHz Operation G MMA 701 B

PDF File Details

Part number:

MMA701

Manufacturer:

MCE

File Size:

2.38MB

Download:

📄 Datasheet

Description:

High linearity packaged hbt.

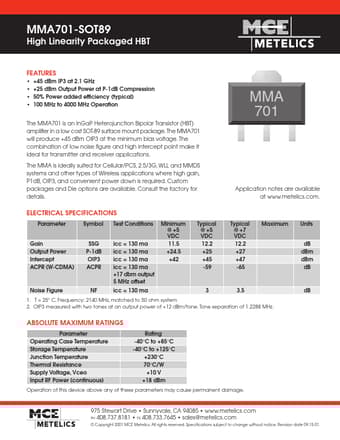

Datasheet Preview: MMA701 📥 Download PDF (2.38MB)
Page 2 of MMA701 Page 3 of MMA701

MMA701 Application

  • Applications The MMA is ideally suited for Cellular/PCS, 2.5/3G, WLL and MMDS systems and other types of Wireless applications where high gain, P1d
