UT54ACS34 Datasheet - Aeroflex Circuit Technology

UT54ACS34 Hex Noninverting Buffers

The UT54ACS34 and the UT54ACTS34 are hex noninvertering buffers. The circuits perform the Boolean functions Y = A. The devices are characterized over full military temperature range of -55°C to +125°C. FUNCTION TABLE INPUT A H L OUTPUT Y H L LOGIC SYMBOL PINOUTS 14-Pin DIP Top View A1 1 14 V.

UT54ACS34-AeroflexCircuitTechnology.pdf

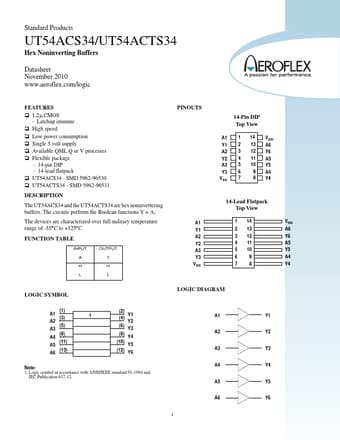

Preview of UT54ACS34 PDF
UT54ACS34 Datasheet Preview Page 2 UT54ACS34 Datasheet Preview Page 3

Datasheet Details

Part number:

UT54ACS34

Manufacturer:

Aeroflex Circuit Technology

File Size:

218.22 KB

Description:

Hex noninverting buffers.
