AMMP-6220 6-20 GHz Low Noise Amplifer

📥 Download Datasheet  Datasheet Preview Page 1

Description

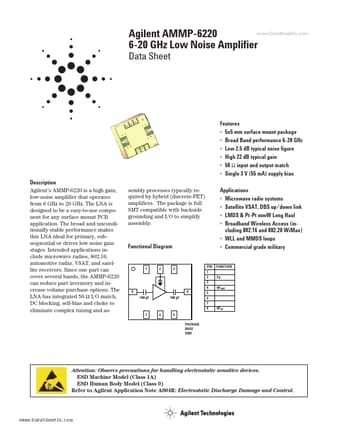

Agilent AMMP-6220 6-20 GHz Low Noise Amplifier Data Sheet www.DataSheet4U.com .
Agilent’s AMMP-6220 is a high gain, low-noise amplifier that operates from 6 GHz to 20 GHz.

📥 Download Datasheet

Preview of AMMP-6220 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
AMMP-6220
Manufacturer
Agilent Technologies
File Size
425.26 KB
Datasheet
AMMP-6220_AgilentTechnologies.pdf
Description
6-20 GHz Low Noise Amplifer

Features

* 5x5 mm surface mount package
* Broad Band performance 6-20 GHz
* Low 2.5 dB typical noise figure
* High 22 dB typical gain
* 50 W input and output match

Applications

* include microwave radios, 802.16, automotive radar, VSAT, and satellite receivers. Since one part can cover several bands, the AMMP-6220 can reduce part inventory and increase volume purchase options. The LNA has integrated 50 W I/O match, DC blocking, self-bias and choke to eliminate complex tuning
