AMMP-6530 Datasheet, Mixer, Agilent Technologies

AMMP-6530 Features

  • Mixer
  • 5x5 mm Surface Mount Package
  • Broad Band Performance 5
      – 30 GHz
  • Low Conversion Loss of 8 dB
  • High Image Rejection of 15
     &

PDF File Details

Part number:

AMMP-6530

Manufacturer:

Agilent Technologies

File Size:

281.20kb

Download:

📄 Datasheet

Description:

5-30 ghz image reject mixer. Agilent’s AMMP-6530 is an image reject mixer that operates from 5 GHz to 30 GHz. The cold channel FET mixer is designed to be an easy

Datasheet Preview: AMMP-6530 📥 Download PDF (281.20kb)

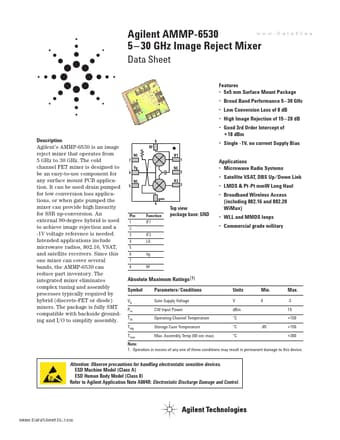

Page 2 of AMMP-6530 Page 3 of AMMP-6530

AMMP-6530 Application

  • Applications or when gate pumped the mixer can provide high linearity for SSB up-conversion. An external 90-degree hybrid is used to achieve image
