AMMP-6546

18 to 40 GHz GaAs MMIC Sub-Harmonic Mixer

AMMP-6546 Features

* x RF Frequency : 18-40 GHz x LO Frequency : 9-20 GHz x IF Frequency : DC-3.5 GHz x 5x5 mm Surface Mount Package x Suitable for Up and Down Conversion x Diode Mixer x Typical Performance at RF= 21GHz Conversion Loss : 11 dB IIP3 : +12 dBm 2LO-R Leakage : -44 dBm 2LO-I Leakage : -61 dBm x Typical Perf

AMMP-6546 General Description

Applications Avago’s AMMP-6546 is an easy-to-use broadband subharmonic mixer, with the LO injected at half of the frequency of that required by a conventional mixer. AMMP-6546 is similar to AMMP-6545 except that the layout is a mirror image designed to ease integration into transmitter or receiver d.

AMMP-6546 Datasheet (139.89 KB)

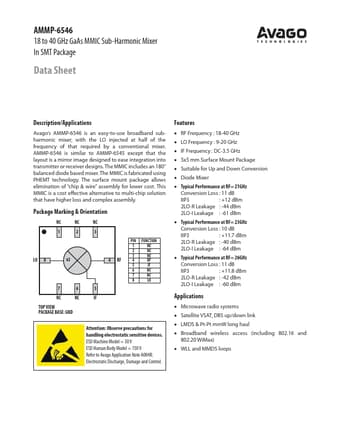

Preview of AMMP-6546 PDF

Datasheet Details

Part number:

AMMP-6546

Manufacturer:

AVAGO

File Size:

139.89 KB

Description:

18 to 40 ghz gaas mmic sub-harmonic mixer.
