AMMP-6532

20-32 GHz GaAs MMIC LNA/IRM Receiver

AMMP-6532 Features

* Surface Mount Package (5.0 x 5.0 x 1.25 mm)

* Integrated Low Noise Amplifier

* Integrated Image Reject Mixer

* 50 Ω Input and Output Match

* Single Supply Bias Pin Specifications Vd=3.0V (83mA), Vg=-1.0V (0.1mA)

* RF Frequency: 20 to 32 GHz

AMMP-6532 General Description

Avago Technologies’ AMMP-6532 is an easy-to-use broadband integrated receiver in a surface mount package. The MMIC includes a 4, -stage LNA to provide gain amplification and a gate-pumped image-reject mixer for frequency translation. The overall receiver performs Single Side Band down-conversion in .

AMMP-6532 Datasheet (452.63 KB)

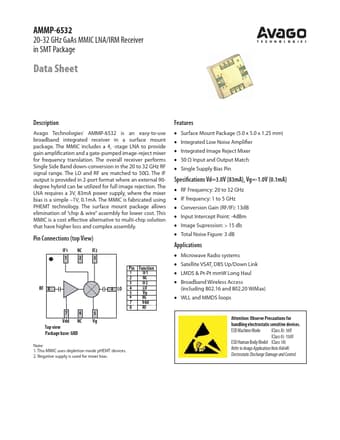

Preview of AMMP-6532 PDF
