AMMP-6522

7 to 20 GHz GaAs MMIC LNA/IRM Receiver

AMMP-6522 Features

* 5x5 mm Surface Mount Package

* Integrated Low Noise Amplifier

* Integrated Image Reject Mixer

* 50 Ω Input and Output Match

* Single Supply Bias Pin Specifications Vd = 4.0 V (75 mA), Vg = -1.0 V (0.1 mA)

* RF frequency: 7 to 20 GHz

AMMP-6522 General Description

Avago’s AMMP-6522 is an easy-to-use broadband integrated receiver in a surface mount package. The MMIC includes a 3-stage LNA to provide gain amplification and a gate-pumped image-reject mixer for frequency translation. The overall receiver performs Single Side Band down-conversion in the 7 to 20 GH.

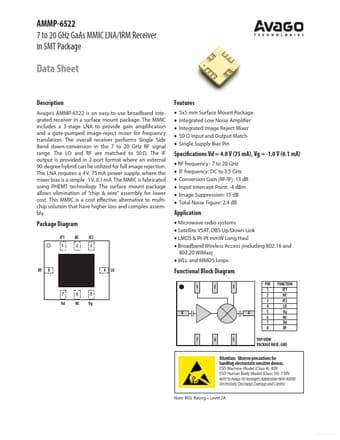

AMMP-6522 Datasheet (261.38 KB)

Preview of AMMP-6522 PDF

Datasheet Details

Part number:

AMMP-6522

Manufacturer:

AVAGO

File Size:

261.38 KB

Description:

7 to 20 ghz gaas mmic lna/irm receiver.
