HSDL-3602

Data 1.4 Compliant 4Mb/s 3V Infrared Transceiver

HSDL-3602 Features

* Fully compliant to IrDA 1.1 specifications:

* 9.6 kb/s to 4 Mb/s operation

* Excellent nose-to-nose operation

* Typical link distance > 1.5 m

* IEC825-Class 1 eye safe

* Wide operating voltage range

* 2.7 V to 3.6 V

* Small module siz

HSDL-3602 General Description

The HSDL-3602 is a low-height infrared transceiver module that provides interface between logic and IR signals for through-air, serial, half-duplex IR data link. The module is compliant to IrDA Data Physical Layer Specifications 1.1 and IEC825-Class 1 Eye Safety Standard. VCC R1 LEDA (10) TXD (9) .

HSDL-3602 Datasheet (389.75 KB)

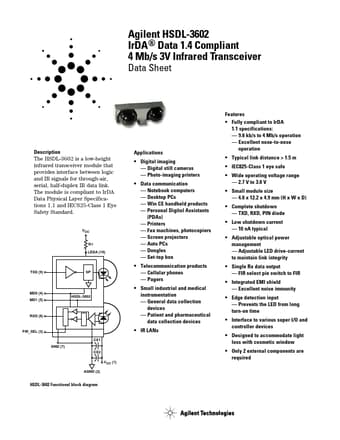

Preview of HSDL-3602 PDF
