1N5817 SCHOTTKY DIODES

1N5817 Description

AiT Components Inc.www.ait-components.com 1N5817~1N5819 SCHOTTKY DIODES SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS .
The 1N5817~1N5819 are available in DO213-AA Package ORDERING INFORMATION Package Type Part Number 1N5817 DO213-AA 1N5818 1N5819 Note SPQ: 2,5.

1N5817 Features

* Metal silicon junction, majority carrier conduction
* Low power loss, high efficiency
* Guard ring for overvoltage protection
* High current capability, low forward voltage drop
* High surge capability
* For use in low voltage, high frequency inverters, free wheeling, and p

1N5817 Applications

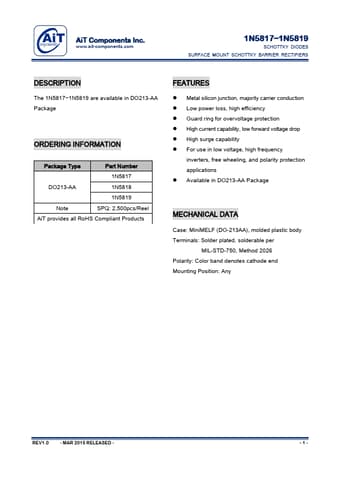

* Available in DO213-AA Package MECHANICAL DATA Case: MiniMELF (DO-213AA), molded plastic body Terminals: Solder plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any REV1.0 - MAR 2015 RELEASED - -1- AiT Components Inc. www. ait-compon
