DS112W, DS12W SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

DS112W Description

AiT Components Inc.www.ait-components.com DS12W~DS120W SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER REVERSE VOLTAGE 20 TO 200V FORWARD CURRENT 1A DESCR.
The DS12W~DS120W are available in SOD-123FL Package.

DS112W Applications

* Low power loss, high efficiency
* High forward surge current capability
* For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications
* Metal silicon junction, majority carrier conduction
* Available in SOD-123FL Package MECHANICAL DATA

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DS112W, DS12W. Please refer to the document for exact specifications by model.

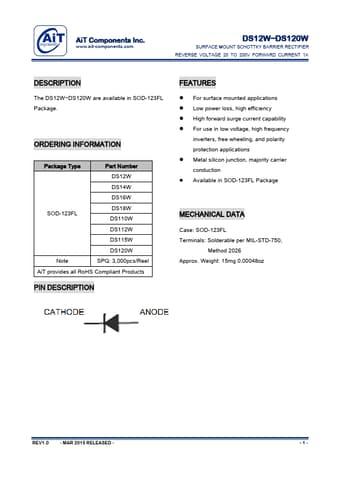

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DS112W, DS12W
Manufacturer
AiT Components
File Size
637.86 KB
Datasheet
DS12W-AiTComponents.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: DS112W, DS12W.
Please refer to the document for exact specifications by model.
