MUN2231

NPN SILICON SURFACE MOUNT TRANSISTOR

MUN2231 Features

* Simplifies Circuit Design

* Reduces Board Space and Component Count

* The SOT-23 package can be soldered using wave or reflow. The modified gull-winged leads absorb thermal stress during soldering eliminating the possibility of damage to the die.

* Available in SOT-23 Package The

MUN2231 General Description

This new series of digital transistors is designed to replace a single device and its external resistor bias network. The BRT (Bias Resistor Transistor) contains a single transistor with a monolithic bias network resistor. The BRT eliminates these individual components by integrating them into a sin.

MUN2231 Datasheet (1.51 MB)

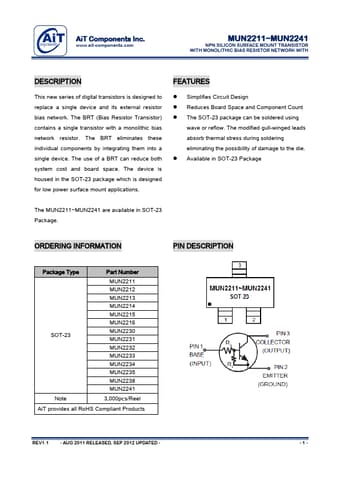

Preview of MUN2231 PDF

Datasheet Details

Part number:

MUN2231

Manufacturer:

AiT Components

File Size:

1.51 MB

Description:

Npn silicon surface mount transistor.
AiT Components Inc. www.ait-components.com MUN2211~MUN2241 NPN SILICON SURFACE MOUNT TRANSISTOR WITH MONOLITHIC BIAS RESISTOR NETWORK WITH DESCRIPTI.
