MUN2234, MUN2211 NPN SILICON SURFACE MOUNT TRANSISTOR

MUN2234 Description

AiT Components Inc.www.ait-components.com MUN2211~MUN2241 NPN SILICON SURFACE MOUNT TRANSISTOR WITH MONOLITHIC BIAS RESISTOR NETWORK WITH DESCRIPTI.
This new series of digital transistors is designed to replace a single device and its external resistor bias network.

MUN2234 Features

* Simplifies Circuit Design
* Reduces Board Space and Component Count
* The SOT-23 package can be soldered using wave or reflow. The modified gull-winged leads absorb thermal stress during soldering eliminating the possibility of damage to the die.
* Available in SOT-23 Package The

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MUN2234, MUN2211. Please refer to the document for exact specifications by model.

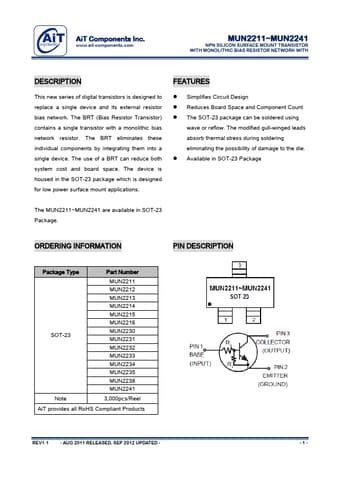

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MUN2234, MUN2211
Manufacturer
AiT Components
File Size
1.51 MB
Datasheet
MUN2211-AiTComponents.pdf
Description
NPN SILICON SURFACE MOUNT TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: MUN2234, MUN2211.
Please refer to the document for exact specifications by model.
