MUN2233, MUN2211 Datasheet - AiT Components

MUN2233 - NPN SILICON SURFACE MOUNT TRANSISTOR

This new series of digital transistors is designed to replace a single device and its external resistor bias network. The BRT (Bias Resistor Transistor) contains a single transistor with a monolithic bias network resistor. The BRT eliminates these individual components by integrating them into a sin.

MUN2233 Features

* Simplifies Circuit Design

* Reduces Board Space and Component Count

* The SOT-23 package can be soldered using wave or reflow. The modified gull-winged leads absorb thermal stress during soldering eliminating the possibility of damage to the die.

* Available in SOT-23 Package The

MUN2211-AiTComponents.pdf

This datasheet PDF includes multiple part numbers: MUN2233, MUN2211. Please refer to the document for exact specifications by model.

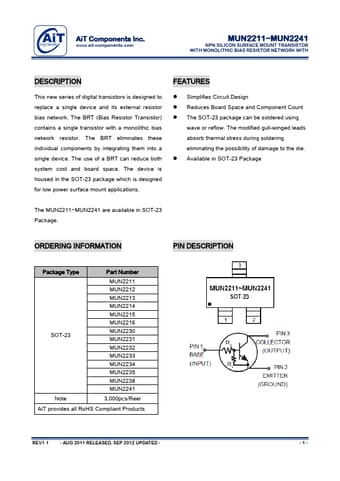

MUN2233 Datasheet Preview Page 2 MUN2233 Datasheet Preview Page 3

Datasheet Details

Part number:

MUN2233, MUN2211

Manufacturer:

AiT Components

File Size:

1.51 MB

Description:

Npn silicon surface mount transistor.

Note:

This datasheet PDF includes multiple part numbers: MUN2233, MUN2211.
Please refer to the document for exact specifications by model.
