AFC7420, AFC7420-Alfa Datasheet - Alfa-MOS

AFC7420 N&P-Channel MOSFET

AFC7420, N & P Pair enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These devices are particularly suited for low voltage power management, and low in-line power loss are needed in commercial industrial surface mount applications. Pin Descripti.

AFC7420 Features

* N-Channel z 40V/15A,RDS(ON)=8mΩ@VGS=10V z 40V/10A,RDS(ON)=10mΩ@VGS=4.5V P-Channel z -40V/-15A,RDS(ON)=13mΩ@VGS=-10V z -40V/-10A,RDS(ON)=16mΩ@VGS=-4.5V Application z Point-of-Load Synchronous Rectifier - 5 V or 3.3 V BUS Step Down z Synchronous Buck, Shoot-Thru Resistant Pin Define Pin 1 2 3 4 5 6

AFC7420-Alfa-MOS.pdf

This datasheet PDF includes multiple part numbers: AFC7420, AFC7420-Alfa. Please refer to the document for exact specifications by model.

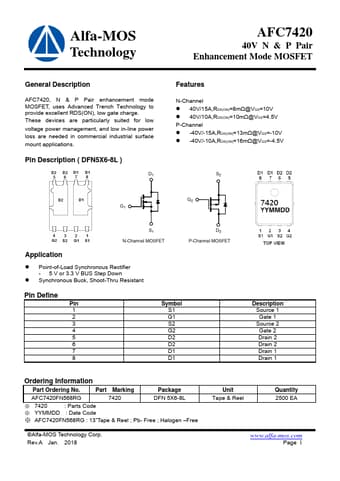

AFC7420 Datasheet Preview Page 2 AFC7420 Datasheet Preview Page 3

Datasheet Details

Part number:

AFC7420, AFC7420-Alfa

Manufacturer:

Alfa-MOS

File Size:

616.70 KB

Description:

N&p-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: AFC7420, AFC7420-Alfa.
Please refer to the document for exact specifications by model.
