AFC2517W Datasheet, Mosfet, Alfa-MOS

AFC2517W Features

  • Mosfet z N-Channel 20V/4.6A,RDS(ON)=25mΩ@VGS=4.5V 20V/4.2A,RDS(ON)=30mΩ@VGS=2.5V 20V/3.8A,RDS(ON)=38mΩ@VGS=1.8V z P-Channel -20V/-3.6A,RDS(ON)=52mΩ@VGS=4.5V -20V/-3.2A,RDS(ON)=65mΩ@VGS=2.5V -2

PDF File Details

Part number:

AFC2517W

Manufacturer:

Alfa-MOS

File Size:

785.95kb

Download:

📄 Datasheet

Description:

N & p-channel enhancement mode mosfet. AFC2517W, N & P Pair enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These de

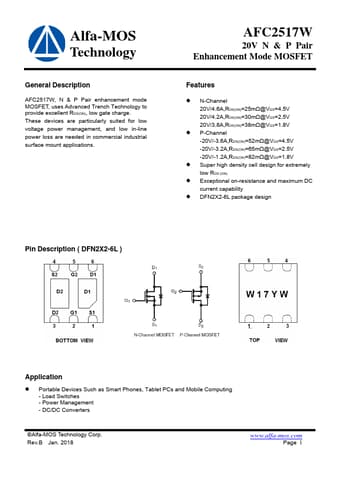

Datasheet Preview: AFC2517W 📥 Download PDF (785.95kb)
Page 2 of AFC2517W Page 3 of AFC2517W

AFC2517W Application

  • Applications AFC2517W 20V N & P Pair Enhancement Mode MOSFET Features z N-Channel 20V/4.6A,RDS(ON)=25mΩ@VGS=4.5V 20V/4.2A,RDS(ON)=30mΩ@VGS=2.5V 20
